Model：WX-Y6
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
1. Product Introduction
As a professional manufacturer specializing in the research, development, production, and sales of micro-meteorological instruments, our company has always been committed to the promotion and application of micro-meteorological instruments and meteorological environmental solutions. With a complete production chain, a strong technical team, and a comprehensive marketing team, the meteorological products we have developed and produced, such as ultrasonic anemometers, five-element micro-meteorological instruments, six-element micro-meteorological instruments, and small automatic meteorological stations, have been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, navigation ships, civil aviation airports, bridges, and tunnels. Our customers are spread all over the country, and we have achieved good social and economic benefits.
The principle of the Y6 type six-element micro-meteorological instrument is to emit continuous variable frequency ultrasonic signals, and to detect wind speed and direction by measuring the relative phase. Compared with traditional ultrasonic anemometers, our company's products overcome the need for high-precision timers, avoid the problems of inaccurate measurement caused by sensor startup delay, demodulation circuit delay, and temperature changes.
The Y6 type six-element micro-meteorological instrument innovatively integrates the six meteorological standard parameters (ambient temperature, relative humidity, wind speed, wind direction, atmospheric pressure, and piezoelectric rain gauge) into a highly integrated structure, enabling continuous online monitoring of outdoor meteorological parameters for 24 hours. The six parameters are output to the user at one time through a digital communication interface.
Second, product features
1、Top cover hidden ultrasonic probe, avoiding the interference of rain and snow accumulation, avoiding the natural wind from blocking☆
2、The principle is to emit a continuous variable frequency ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase☆
3、Wind speed, wind direction, temperature, humidity, atmospheric pressure, and piezoelectric rainfall six elements in one star.
4、Advanced sensing technology is adopted to measure in real time, without a starting wind speed☆
5、Strong anti-interference ability, with a watchdog circuit, automatic reset function, to ensure the stable operation of the system
6、High integration, no moving parts, zero wear and tear
7、Maintenance-free, no on-site calibration required
8、Outdoor application of ASA engineering plastic does not fade for many years
9、Product design output signal standard for RS485 communication interface (MODBUS protocol); optional 232, USB, Ethernet interface, support real-time data reading ☆
10、Optional wireless transmission module, minimum transmission interval 1 minute
11、The probe is designed with a buckle, solving the problem of looseness and inaccuracy during transportation and installation.☆
Three, Technical Parameters
1. Wind speed: 0～60m/s (±0.1m/s);
2、Wind direction: 0～360° (±2°);
3、Air temperature: -40-60℃ (±0.3℃);
4、Air humidity: 0-100%RH (±3%RH);
5、Atmospheric pressure: 300-1100hpa (±0.25%);
6、Piezoelectric rain gauge: 0-4mm/min (±4%)
7、Power: 1.08W
8、Production enterprises have ISO quality management system, environmental management system and occupational health management system certification ☆
9、The production enterprise has a computer software registration certificate☆
10、The production enterprise is a credit enterprise of grade 3A☆

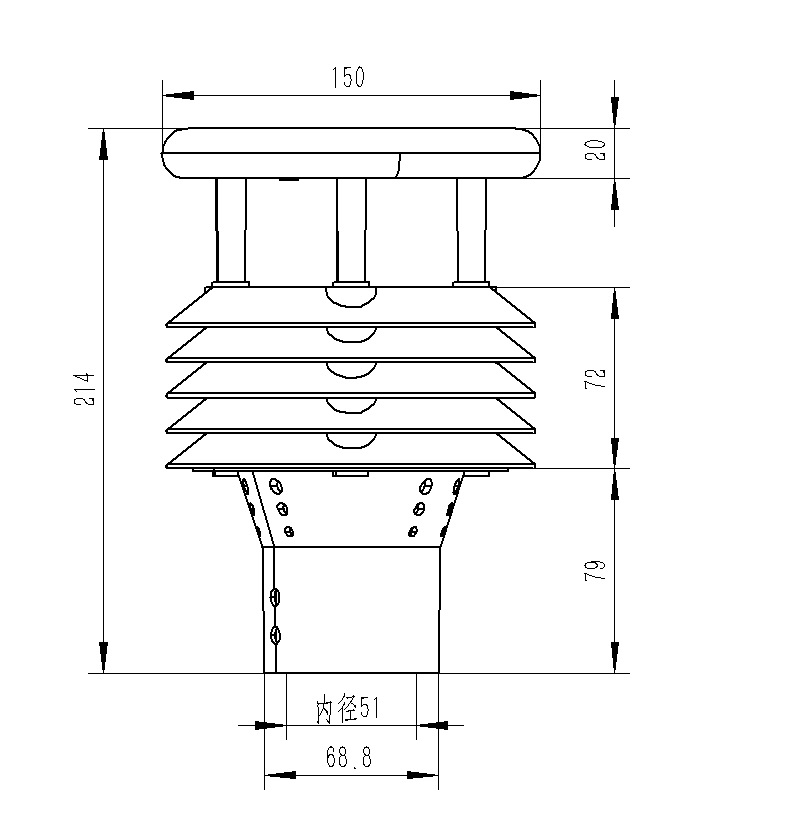

IV. Product Size Chart

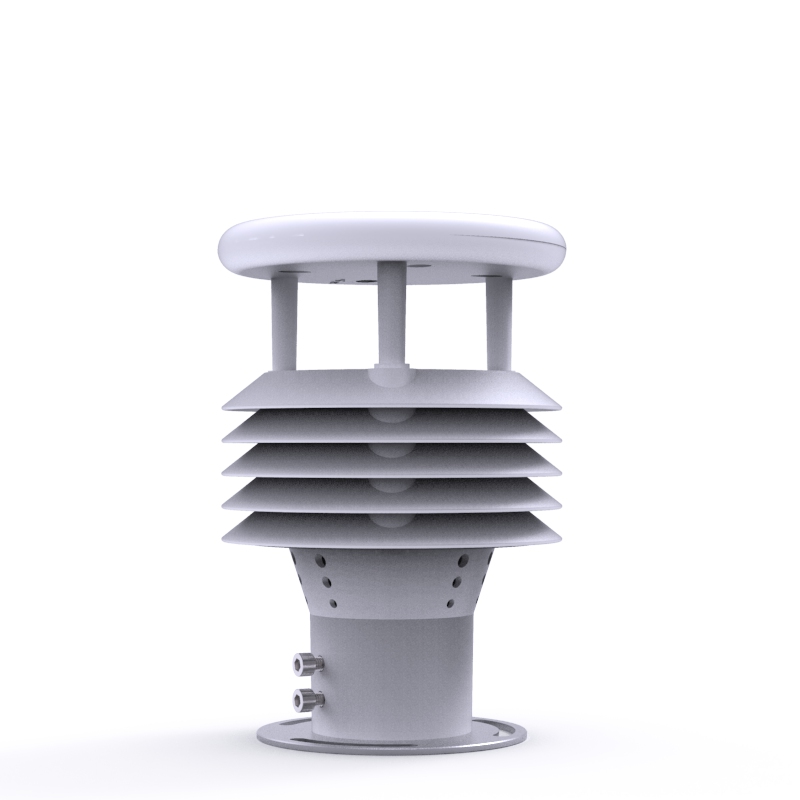

5. Product structure diagram
Six, matters needing attention
1. Sensor level with a radius of 1.5 meters around without obstructions, avoid water droplets splashing affecting
2. The sensor mounting position should avoid strong mechanical vibration sources.
3. The area above the sensor should be open, and raindrops should fall directly onto the sensor without any secondary dripping or continuous flow of water impact.
