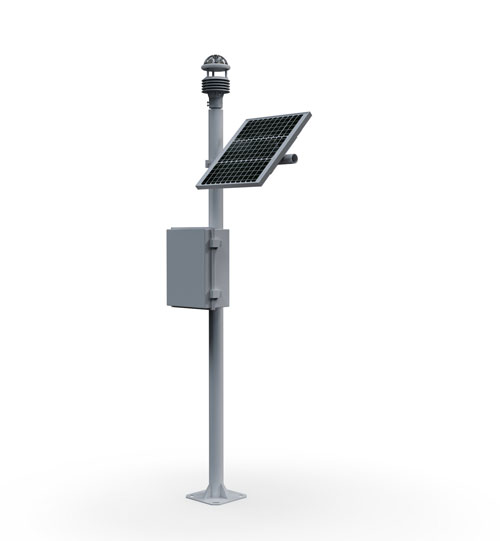

1. Product introduction of Ultrasonic meteorological monitoring station

 The ten-element integrated weather station is also called the ten-element weather station, the ten-element ultrasonic weather station , and the ten-element integrated weather station uses a ten-element integrated sensor that can monitor ten meteorological elements at the same time and is widely used in meteorology, agriculture, forestry, and environmental protection. , oceans, airports, ports, scientific expeditions, campus education and other fields.

 The WX-CQX10 ultrasonic weather station is a high-precision automatic weather observation equipment that is highly integrated, has low power consumption, can be quickly installed, and is easy to use for field monitoring.

 This equipment requires no debugging and can be quickly deployed. It is widely used in meteorology, agriculture, forestry, environmental protection, oceans, airports, ports, scientific expeditions, campus education and other fields.

 Compared with traditional ultrasonic weather stations , our products overcome the need for high-precision timers and avoid measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature changes.

 This equipment innovatively adopts a seven-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, light, optical rainfall, etc. It can realize 24-hour continuous online monitoring of outdoor meteorological parameters through digital communication. The interface outputs seven parameters to the user at once.

 2. Product features

 1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind.

 2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring the relative phase.

 3. Seven-element integrated sensor of wind speed, wind direction, temperature, humidity, air pressure, light, and optical rainfall

 4. Standard GPRS; optional RJ45, Ethernet, 4-20ma, Lora transparent transmission, 4G transparent transmission, Bluetooth, 485 to USB and other transmission methods

 5. Two-meter carbon steel bracket, the top can be directly connected to the sensor without a flange

 6. The sensor shell is made of imported ASA material, which is more effective against salt spray and other environments, and the protection level reaches IP65 or above.

 3. Technical parameters


 1. Wind speed (standard configuration): Range: 0~60m/s; Resolution: 0.01m/s; Accuracy: ±0.1m/s

 2. Wind direction (standard configuration): Range: 0~360°; Resolution: 1°; Accuracy: ±2°

 3. Air temperature (standard configuration): Range: -40-60℃; Resolution 0.01℃; Accuracy: ±0.3℃ (25℃)

 4. Air humidity (standard configuration): Range: 0-100%RH; Resolution: 0.01%RH; Accuracy: ±3%RH

 5. Atmospheric pressure (standard configuration): Range: 30-110Kpa; Resolution 0.01Kpa; Accuracy: ±0.25%

 6. Optical rainfall (standard configuration): range: 0-4mm/min; resolution 0.01mm; accuracy: ≤±4%

 7. Illuminance (standard configuration): Range: 0-20W LUX; Resolution 1lux; Accuracy: ±10% (<500 micrograms)

 8. Other optional elements: piezoelectric rainfall, TSP, carbon monoxide, sulfur dioxide, nitrogen dioxide, ozone, PM2.5, PM10, noise, total radiation, carbon dioxide, oxygen content, hydrogen sulfide, hydrogen, chlorine, ammonia, Hydrogen chloride, hydrogen cyanide, hydrogen fluoride, phosphine, chlorine dioxide, ethylene oxide, nitric oxide, hydrogen peroxide, tetrahydrothiophene, formaldehyde, VOC, catalytic combustion combustible gas

 9. Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A

 10. Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, equipment configuration interface: GX-12-4P plug, input voltage 5V

 11. Solar powered, equipped with lead-acid battery, optional 30W 20AH/50W 40AH/100W 100AH. Charge controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%

 12. Data upload interval: adjustable from 1 minute to 1000 minutes

 13. Android 7-inch touch screen, screen size: 1024*600 RGB LCD

 14. The whole machine has obtained the provincial calibration certificate

 15. The production enterprise is a 3A credit enterprise

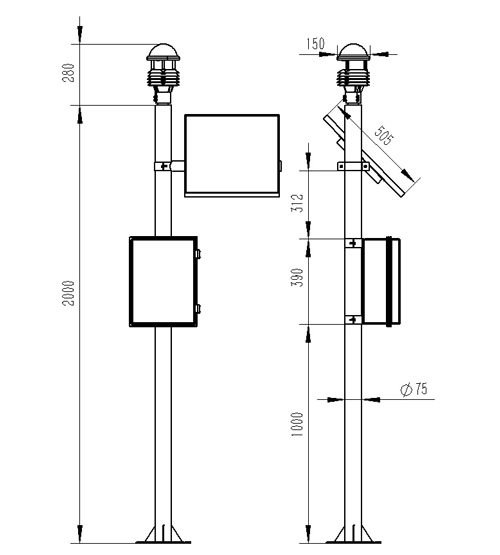

4. Product size chart

5. Product Structure Chart

6. Introduction to PC software

1. PC stand-alone version of data receiving, storage, viewing and analysis software

2. Support serial port data reception, processing and display

3. Support json string, modbus485 and other communication methods

4. The storage time can be set by oneself, and the collection time can be set by oneself in the modbus485 collection mode.

5. Support self-service adding, deleting, and modifying protocols, names, icons, etc. of monitoring parameters

6.Support data post-processing function

7. Supports external running of javascript scripts

7. Introduction to Android APP

1. Android stand-alone version of data receiving, storage, viewing and analysis software

2.Support Bluetooth data reception

3. After the mobile phone is asleep, the software receives and processes it in the background

4. JSON data automatically adds devices, and modbus devices support scanning QR codes to add devices.

5. Supports historical data viewing, analysis, and table export, and supports curve display and single data point viewing.

6.Support data post-processing function

7. Supports external running of javascript scripts

8. Introduction to cloud platform

1. CS architecture software platform supports direct observation on mobile phones and PC browsers without installing additional software.

2. Support multiple accounts and multiple devices to log in

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable and reliable, easy to expand and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and view device information.

7. Support data curve analysis

8. Support data export table format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
