Model：WX-CQ12
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
1. Product introduction
The WX-CQ12small automatic weather station is a high-precision meteorological observation equipment that is highly integrated, has low power consumption, can be quickly installed, and is easy to use for field monitoring.
The equipment consists of five parts: meteorological sensor, collector, solar power supply system, pole bracket, and cloud platform.It requires no debugging and can be quickly deployed. It is widely used in meteorology, agriculture, forestry, environmental protection, oceans, airports, ports, scientific expeditions, campus education and other fields.
2. Product features
1.Low-power collector: static power consumption is less than50uA
2.StandardGPRSnetworking, support for extended Bluetooth and wired transmission
3.7-inch Android touch screen, version:4.4.2,quad-coreCortex?-A7,512M/4G (optional)
4.Supportmodbus485sensor expansion
5.Solar charging managementMPPTautomatic power point tracking
6.Three-meter carbon steel bracket, two-section flange butt joint
7.SMS alarm, send SMS to the designated mobile phone after exceeding the limit
8.ABSmaterial protective box, corrosion-resistant, anti-oxidation, waterproofgradeIP66
3. Technical parameters
1)Collector power supply interface:GX-12-3Pplug, input voltage5V, withRS232outputJsondata format,collector power supply:DC5V±0.5Vpeak current1A,
2)Sensormodbus,485interface:GX-12-4Pplug, output power supply voltage12V/1A,equipment configuration interface:GX-12-4Pplug, input voltage5V
3)Solar powered, equipped with lead-acid battery, optional30W 20AH/50W 40AH/100W 100AH.Charge controller:150W,MPPTautomatic power point tracking, efficiency increased by20%
4)Data upload interval:adjustable from1 minute to 1000 minutes
5) 7-inch Android touch screen, screen size:1024*600 RGB LCD (optional)
6)Sensor parameters
1)Wind speed:0~30m/s(±0.1m/s);
2)Wind direction:0~360° (less than 3°, >1m/s);
3)Air temperature:-40℃ ~85℃ (±0.3℃);
4)Air humidity:0~100%RH(±3%RH);
5)Atmospheric pressure:300hPa~1100hPa(±0.25%);
6)PM2.5：0-1000ug/m3（±10%）
7)PM10：0-1000ug/m3（±10%）
8)Rainfall: ≦4mm/min(±0.2mm);
9) Carbon monoxide: 0-1000ppm (±2PPM)
10) Sulfur dioxide: 0-20PPM (±1PPM)
11) Nitrogen dioxide: 0-20PPM (±1PPM)
12) Ozone: 0-20PPM (±1PPM)
8)The production enterprise hasISOquality management system, environmental management system and occupational health management system certification.7)The complete machine has obtained the calibration certificate of the National Meteorological Station.
9)The production enterprise has an intellectual property management system certification certificate and a computer software registration certificate
10)The production enterprise is a3Acredit enterprise

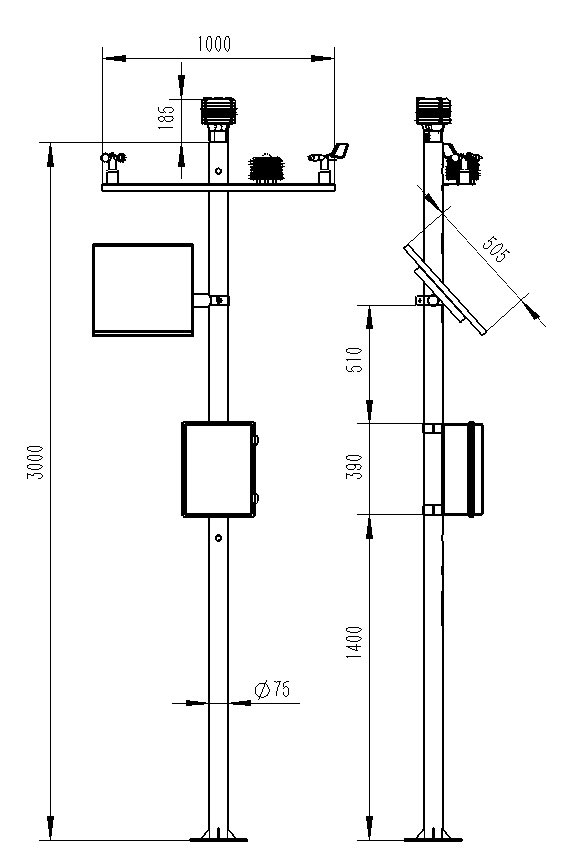

4. Product size chart

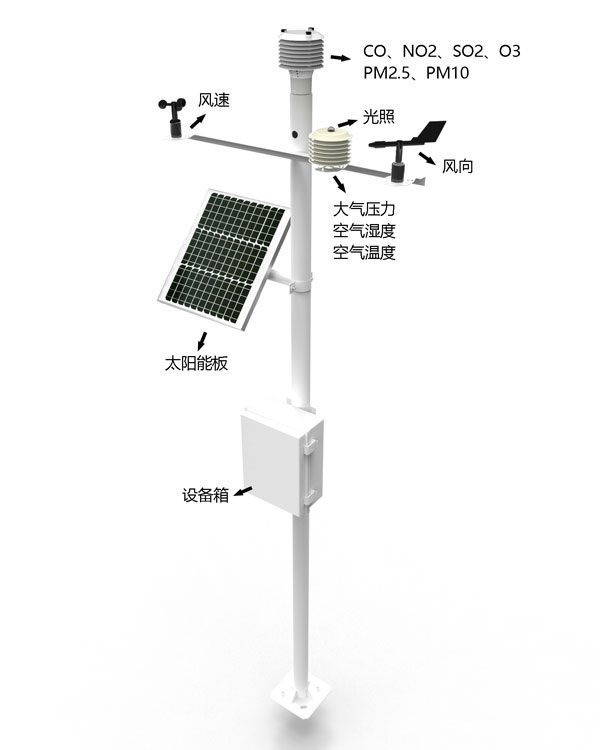

5. Product Structure Chart
6. Introduction to PC software
1.PC stand-alone version of data receiving, storage,viewingand analysis software
2.Support serial port data reception, processing and display
3.Supportjsonstring,modbus485and other communication methods
4.The storage time can be set by oneself, andthe collection time can be set by oneself in themodbus485 collection mode.
5.Support self-service adding, deleting, and modifying protocols, names, icons, etc. of monitoring parameters
6.Support data post-processing function
7.Support external running ofjavascriptscripts
7.Introduction to AndroidAPP
1.Android stand-alone data receiving, storage, viewing and analysis software
2.Support Bluetooth data reception
3.After the mobile phone is asleep, the software receives and processes it in the background
4.JSONdata automatically adds devices, andmodbusdevicessupport scanning QR codes to add devices.
5.Supports historical data viewing, analysis, and table export, and supports curve display and single data point viewing.
6.Support data post-processing function
7.Support external running ofjavascriptscripts
8. Introduction to cloud platform
1.CSarchitecture software platform supports direct observation on mobile phones andPCbrowserswithout the need to install additional software.
2.Support multiple accounts and multiple device logins
3.Support real-time data display and historical data display dashboard
4.Cloud servers and cloud data storage are stable and reliable, easy to expand and load balanced.
5.Support SMS alarm and threshold setting
6.Support map display and device information viewing.
7.Support data curve analysis
8.Support data export table format
9.Support data forwarding,HJ-212protocol,TCPforwarding,httpprotocol, etc.
10.Support data post-processing function
11.Support external running ofjavascriptscripts
