Model：WX-XL2
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
Ultrasonic snow depth sensor Product introduction
Ultrasonic snow depth sensors have many advantages such as real-time monitoring, non-contact measurement, and automated data recording, and are widely used in meteorological monitoring, traffic management, and winter sports fields.
The XL2 ultrasonic snow depth sensor is a sensor that uses ultrasonic technology to detect distance on the snow surface. The sensor adopts an integrated capacitive electrostatic transducer probe design, which has high sensitivity, strong anti-interference ability and high precision.
2. Technical indicators
Power supply: DC12V
Working environment: -40-60℃, humidity ≤100%, no condensation
Communication interface: RS485
Working current: 18mA DC12V
Minimum data interval: 0.2S
Shell material: aluminum alloy
Measuring range: 0-2000mm
Measurement resolution: 1mm
Accuracy: 1mm±0.2%FS

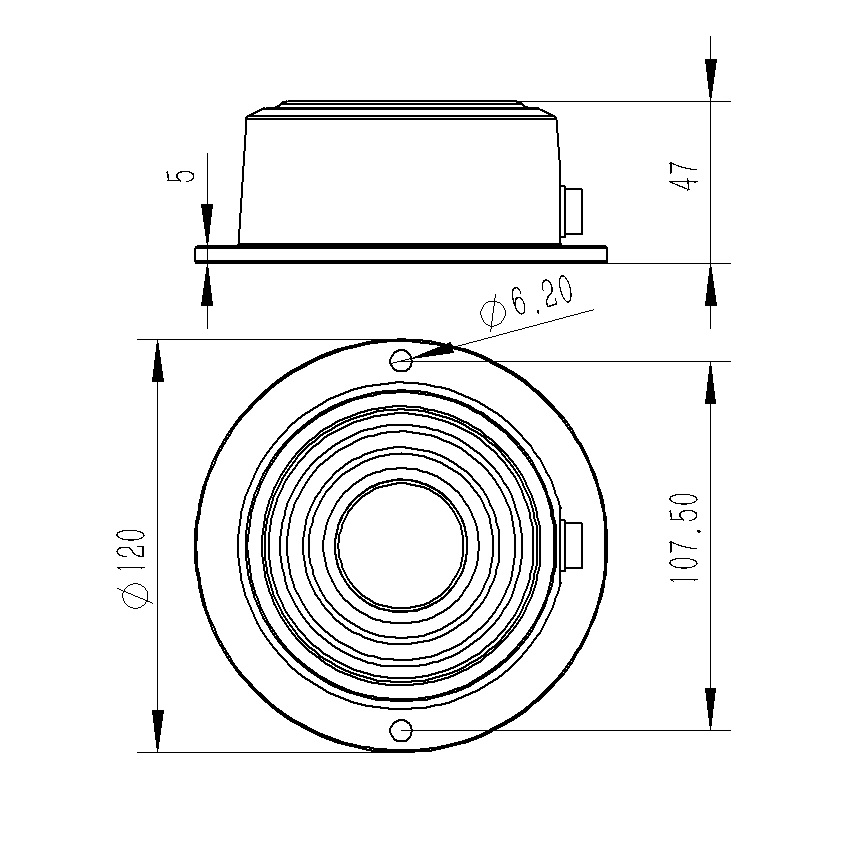

3. Product size chart
4. Product use
The equipment installation location should be in an open area
The equipment installation cross arm should be at least 1M
There should be no obstructions above the device
The distance between the equipment and the ground plane should be within 20cm-200cm. To ensure measurement accuracy, the recommended distance is 100cm.
The equipment installation bracket should be kept level. It is best to make the reflective ground of the sensor horizontal. The reflection point should be within a radius of 1 meter to avoid interference from weeds.
