Water Quality Buoy Monitoring Station

update time ：2025-11-20

Model：WX-SFB06

Product Price: Electronic Negotiation

Product brand: Wanxiang Environment

The water quality buoy monitoring station is a water quality monitoring device used to monitor the quality of water bodies and environmental conditions in real time. It can be equipped a variety of high-precision sensors to monitor core parameters such as water temperature, pH value, dissolved oxygen, conductivity, turbidity, ammonia nitrogen, etc., and is with solar power supply and low power consumption, which can achieve long-term unmanned monitoring, automatic data collection and transmission.

phone ：15666889815 QQ：1950883583

Related recommendations

product details

1. Functional Introduction

1. The SFB floating buoy water quality monitoring station adopts an enhanced integrated conical structure, which increases the stability and durability of the equipment and is more in line with the engineering of the floating body.

Real-time measurement of hydrological, water quality and meteorological parameters in lakes or watersheds can be carried out. The system integrates data collection and transmission, and has the functions of over-standard SMS alarm and automatic light sensing. It has the characteristics of many measuring parameters, high measuring accuracy, large storage capacity, convenient networking, and stable operation. The buoy adopts an unattended intelligent control system to complete the data collection of multiple sensors and the transmission of data; the solar panel and the large-capacity storage battery form a solar power supply system, which can ensure the power supply required for the system to work long-term in the wild; the buoy body is made of ultra-high molecular weight polyethylene material, which has good corrosion resistance, prevents biological attachment, does not fade, has strong collision resistance, anti-lightning, no magnetism and other characteristics, which is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.

2.SFB06 type float buoy is composed of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen, turbidity), data logger, communication system, power supply system, overall bracket, water quality monitoring platform. At the same time, it can be extended to include chlorophyll,COD and other water quality parameters. The data logger has data acquisition, real-time clock, data定時 storage, parameter setting and standard2G/4G (GPRS) communication function.

Second, product features

1. Easy deployment: All types of probes are highly integrated, easy to install; free cloud platform service is provided, and the system is quickly launched;

2. Easy maintenance: The equipment can operate independently after installation, without the need for manual supervision, and can also be monitored remotely to ensure the normal operation of the equipment;

3. Easy to expand: all sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand the monitoring parameters;

4. Low power consumption: The device can achieve low power consumption state, allowing long-term operation, increasing the convenience of device use;

5. Real-time: Data monitored by the device is transmitted to the cloud platform in real-time, enhancing the timeliness of environmental data feedback.

Three, Technical Parameters

1. Subject parameters

Product name	Description

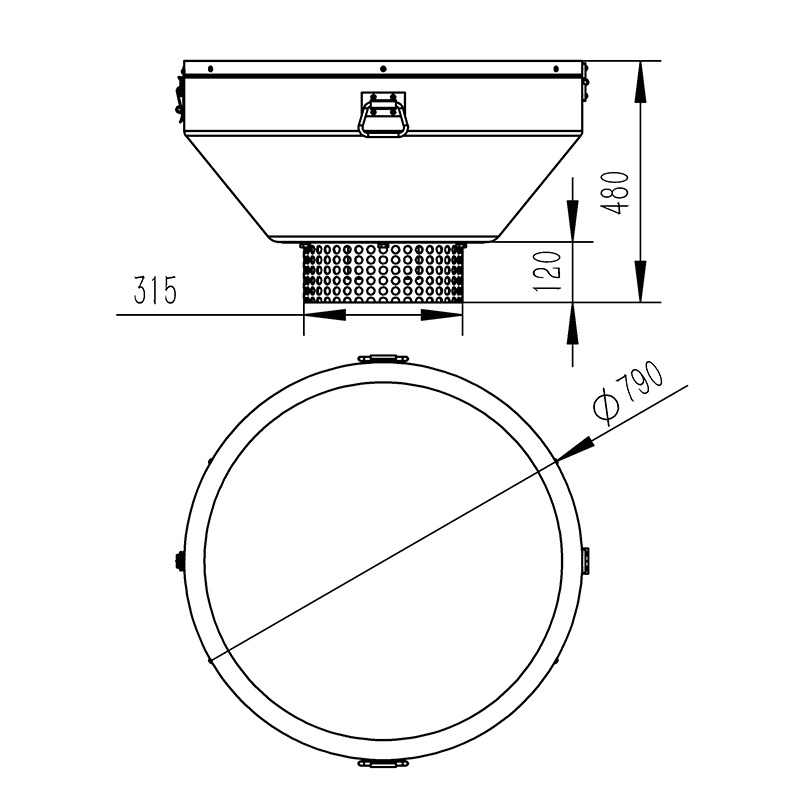

Environmental water quality monitoring buoy	Real-time multi-parameter online monitoring can be achieved. Battery monitoring can be realized. Cloud platform data monitoring, data push, data storage and alarm functions; wireless data transmission function. Peak power consumption is 5W; sensor power consumption is about 0.25W/piece. Dimensions: 800*350mm. The maximum diameter of the float is 790mm. Weight: 26kg.
Core components	Description
Data collection by the collector	Reliable operation, anti-interference, can be integrated with multiple RS485/MODBUS-RTU slave devices
Data output from the collector	1 Road Rs485/JSON protocol output
Battery	Lithium battery 12VDC, 20AH (default)
Solar panels	18V/55W (default) 800mm round solar panel frame custom made from aluminum alloy
Power supply capacity	Customized selection; intermittent work on rainy days for more than 5 days
Location indicator (optional)	Warning light; GPS positioning;
Monitoring platform	Cloud platform; mobile/pc multi-device login
Cover	304 Stainless Steel Filter Housing Cover
Floating body	Diameter 790mm Conical浮體*1 integrated engineering plastic

Main parameters of the optional sensor


Serial number	Name	Measurement range	Measurement principle	Measurement accuracy	Is it standard equipment	Note
1	Temperature	0~50℃	High-precision digital sensor	±0.3℃	?
2	pH	0~14 (ph)	Electrochemistry (salt bridge)	± 0.1PH	?
3	ORP	-1500mv~1500mv	Electrochemistry (salt bridge)	± 6mv
4	Electrical conductivity	0~5000uS/cm	Contact method of electrode	± 1.5%	?
5	Turbidity	0~40NTU (Low turbidity)	Scattering light method	± 1%		Low turbidity can be customized
		0~1000NTU (moderately turbid)	Scattering light method	± 1%		Customizable medium turbidity
		0~3000NTU (High Turbidity)	Scattering light method	± 1%	?	Default send
6	Dissolved oxygen	0~20mg/L	Fluorescence lifetime method	± 2%	?
7	Ammonium nitrogen	0-1000.00mg/L(default) 0-100.00mg/l/(customizable)	Ion selective electrode method	10% of the reading, ±0.5℃	?
8	cod	0~500mg/ L	UV254 absorption method	±5%		Default send, cod turbidity integrated; with automatic cleaner, can prevent biological attachment, avoid window pollution, to ensure long-term monitoring stability; can set automatic cleaning time and cleaning times, power consumption 0.7W
8	Turbidity	0~400NTU	Scattering light method	± 1%
9	Suspended matter	0~2000mg/L	Scattering light method	±5% (depending on the homogeneity of the sludge)
10	Chlorophyll	0~400ug/L	Fluorescence method	R2>0.999		Equipped with an automatic cleaner to prevent bio附著, avoid window pollution, and ensure long-term monitoring stability; the automatic cleaning time and the number of cleanings can be set, with a power consumption of 0.7W.
