update time ：2025-11-20
Model：WX-SFB04
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
The floating water quality monitoring station, also known as the floating automatic water quality monitoring station and the floating water quality analyzer, can be used for water quality monitoring in rivers, lakes, reservoirs, and nearshore waters, etc., to grasp the trend of water quality changes.
1. Functional Introduction
1. The SFB floating buoy water quality monitoring station adopts an enhanced integrated conical structure, which increases the stability and durability of the equipment and is more in line with the engineering of the floating body.
Real-time measurement of hydrological, water quality and meteorological parameters in lakes or watersheds can be carried out. The system integrates data collection and transmission, and has the functions of over-standard SMS alarm and automatic light sensing. It has the characteristics of multiple measuring parameters, high measuring accuracy, large storage capacity, convenient networking, and stable operation. The buoy adopts an unattended intelligent control system to complete the data collection of multiple sensors and the transmission of data; the solar panel and the large-capacity storage battery form a solar power supply system, which can ensure the power supply required for the system to work long-term in the wild; the buoy body is made of ultra-high molecular weight polyethylene material, which has good corrosion resistance, prevents biological attachment, does not fade, has strong collision resistance, anti-lightning, and no magnetism, etc., which is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.
2.SFB04 type floats are composed of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen), data logger, communication system, power supply system, overall bracket, water quality monitoring platform. At the same time, it can be extended to include ammonia nitrogen, turbidity,COD, and other multiple water quality factors. The data logger has data acquisition, real-time clock, data定時(shí) storage, parameter setting, and standard2G/4G (GPRS) communication functions.
Second, product features
1. Easy deployment: All types of probes are highly integrated, easy to install; free cloud platform service is provided, and the system is quickly launched;
2. Easy maintenance: The equipment can operate independently after installation, without the need for manual supervision, and can also be monitored remotely to ensure the normal operation of the equipment;
3. Easy to expand: all sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand the monitoring parameters;
4. Low power consumption: The device can achieve low power consumption state, long-term operation, and increase the convenience of device use;
5. Real-time: The data monitored by the equipment is transmitted to the cloud platform in real-time, enhancing the timeliness of environmental data feedback.
Three, Technical Parameters
1. Subject parameters
| Product name | Description |
| Environmental water quality monitoring buoy | Real-time multi-parameter online monitoring can be achieved. Battery monitoring can be realized. Cloud platform data monitoring, data push, data storage and alarm functions; wireless data transmission function. Peak power consumption is 5W; sensor power consumption is about 0.25W/piece. Dimensions: 800*350mm. The maximum diameter of the float is 790mm. Weight: 26kg. |
| Core components | Description |
| Data collection by the collector | Reliable operation, anti-interference, can be integrated with multiple RS485/MODBUS-RTU slave devices |
| Data output from the collector | 1 Road Rs485/JSON protocol output |
| Battery | Lithium battery 12VDC, 20AH (default) |
| Solar panels | 18V/55W (default) 800mm round solar panel frame custom made from aluminum alloy |
| Power supply capacity | Customized selection; intermittent work on rainy days for more than 5 days |
| Location indicator (optional) | Warning light; GPS positioning; |
| Monitoring platform | Cloud platform; mobile/pc multi-device login |
| Cover | 304 Stainless Steel Filter Housing Cover |
| Floating body | Diameter 790mm Conical浮體*1 integrated engineering plastic |
Main parameters of the optional sensor
| Serial number | Name | Measurement range | Measurement principle | Measurement accuracy | Is it standard equipment | Note |
| 1 | Temperature | 0~50℃ | High-precision digital sensor | ±0.3℃ | ? | |
| 2 | pH | 0~14 (ph) | Electrochemistry (salt bridge) | ± 0.1PH | ? | |
| 3 | ORP | -1500mv~1500mv | Electrochemistry (salt bridge) | ± 6mv | ||
| 4 | Electrical conductivity | 0~5000uS/cm | Contact method of electrode | ± 1.5% | ? | |
| 5 | Turbidity | 0~40NTU (Low turbidity) | Scattering light method | ± 1% | Low turbidity can be customized | |
| 0~1000NTU (moderately turbid) | Scattering light method | ± 1% | Customizable medium turbidity | |||
| 0~3000NTU (High Turbidity) | Scattering light method | ± 1% | Default send | |||
| 6 | Dissolved oxygen | 0~20mg/L | Fluorescence lifetime method | ± 2% | ? | |
| 7 | Ammonium nitrogen | 0-1000.00mg/L(default) 0-100.00mg/l/(customizable) | Ion selective electrode method | 10% of the reading, ±0.5℃ | ||
| 8 | cod | 0~500mg/ L | UV254 absorption method | ±5% | Equipped with an automatic cleaner to prevent bio附著, avoid window pollution, and ensure long-term monitoring stability; the automatic cleaning time and the number of cleanings can be set, with a power consumption of 0.7W. | |
| Turbidity | 0~400NTU | Scattering light method | ± 1% | |||
| 9 | Suspended matter | 0~2000mg/L | Scattering light method | ±5% (depending on the homogeneity of the sludge) | ||
| 10 | Chlorophyll | 0~400ug/L | Fluorescence method | R2>0.999 | Equipped with an automatic cleaner to prevent bio附著, avoid window pollution, and ensure long-term monitoring stability; the automatic cleaning time and the number of cleanings can be set, with a power consumption of 0.7W. |

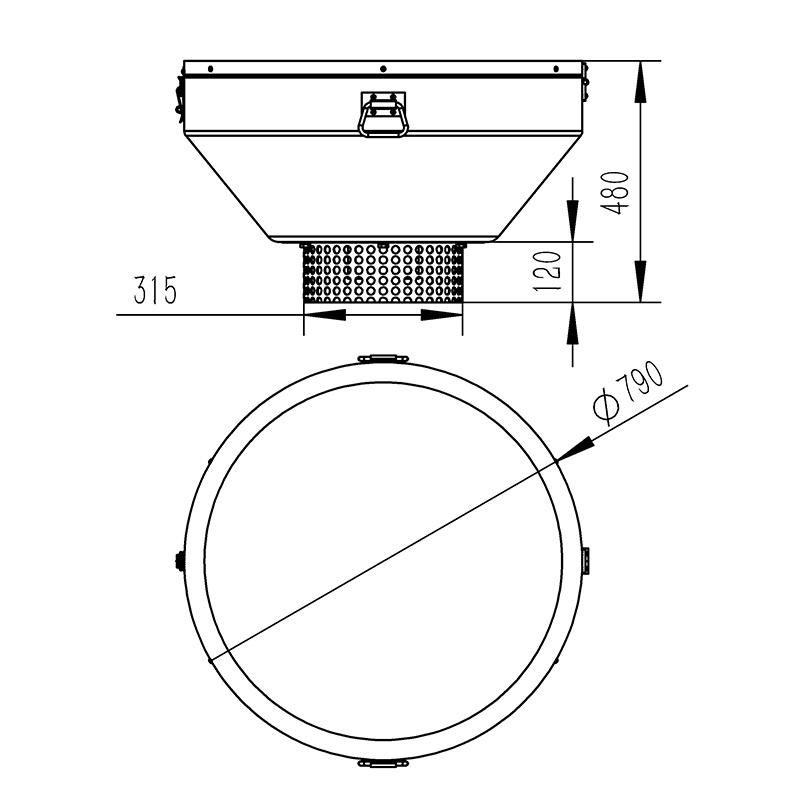

IV. Product Size Chart
5. Equipment installation requirements
1. Stay away from high-power radio transmitting sources
2. Stay away from high-voltage transmission lines and microwave radio transmission channels
3. As close as possible to the data transmission network
4. Stay away from strong electromagnetic interference
Six, Cloud platform introduction
1. CS architecture software platform, supports mobile phones, PC browsers to directly observe. No need to install additional software.
2. Support multiple accounts, multiple devices login
3. Support real-time data display and historical data display dashboard
4. Cloud server. Cloud data storage, stable and reliable, easy to expand, load balancing.
5. Support SMS alarm and threshold setting
6. Support for map display, view device information.
7. Support for data curve analysis
8. Support for data export in table format
9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10. Support for data post-processing functions
11. Support for external JavaScript scripts
