Current location ：Home>>Product center>>Photovoltaic Weather Station>>El detector

el detector

update time ：2025-11-20

Model：WX-EL1

Product Price: Electronic Negotiation

Product brand: Wanxiang Environment

EL detectors are used to detect internal defects in photovoltaic solar panels, which can better assist users in completing product quality testing and controlling production and installation risks.

phone ：15666889815 QQ：1950883583

Related recommendations

product details

el detector product introduction:

EL detector, also known as photovoltaic test instrument, photovoltaic power station tester, portable EL detector, is used to detect internal defects of photovoltaic solar panels. It can better help users complete product quality inspection and control production and installation risks.

The portable EL detector is equipped with a 20 million-level infrared camera that can effectively help users complete photovoltaic panel quality inspection. The whole machine is equipped with a lighter test power supply and tripod module, making it more convenient to carry and transport, and is not affected by air transport.

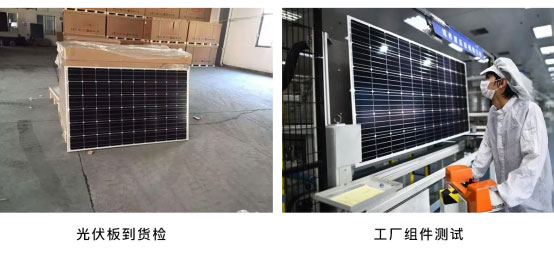

Application scenarios:

Suitable for photovoltaic power station component arrival inspection, as well as component quality testing in warehouses/laboratories/factories.

el detector

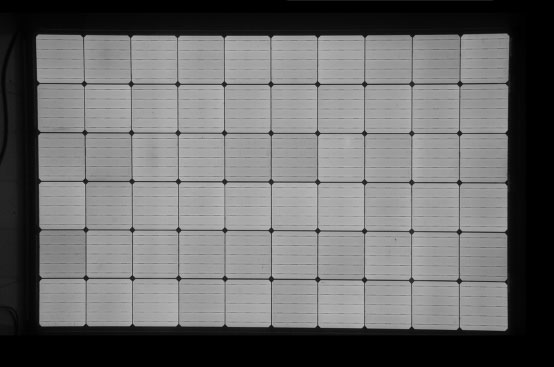

Recognizable defect types:

Hidden crack	scrap	fragments	broken gate	black heart	Virtual soldering
process contamination	low efficiency slice	Black border	sintering	Excessive	perforation

Product Features and Advantages:

1. Easy to carry and suitable for mobile power station testing

2. Fully automatic focusing with higher precision and better definition

3. The 20 million-level infrared camera has a more thorough picture quality

4. On-site inspection of program-controlled constant current power supply is safer and more stable

5. Tablet computer image transmission viewing does not require a camera to view the inspection image

6. The 1.5-meter lightweight tripod is light and easy to move.

7. The whole module is as low as 5kg and can be carried in a backpack

el detector

Application areas:

Scenes	Pre-installation testing of factory components, warehouse components, and power station on-site components,
test	Daytime: outdoor anti-infrared darkroom test; indoor no-sunlight environment test Night: Direct tripod test, light and moonlight have no effect
object	Crystalline silicon components, thin film components (can be customized)
quantity	Single module imaging inspection

Specifications:

module	Configuration	Specification
camera module	Pixel	20 million pixels
	resolution	4928x3264 _ _
	chip	23.6 x 15.6 mm, CMOS sensor
	Accuracy	1.5mm / pixel _
	light shielding	Light, moonlight, starlight, slight indoor sunlight
	Detection area	3000 mm *2000 mm
	lens	18-55 mm
	focus mode	Fully autofocus
	Battery	700 mah
	Memory card	32 GB, Wi-Fi wireless
	data cable	10 cm
Power module	Output current	0 ~ 5 A adjustable
	Current accuracy	0.1A _ _ _
	The output voltage	0 ~ 60 V adjustable
	Voltage accuracy	0.1 V
	control Panel	LED digital display program control panel
	Function settings	The power-on parameters are preset and saved; the output is powered on with one click.
	circuit protection	Short circuit protection, open circuit protection, current backflow protection, overheating protection, electrostatic protection, current and voltage adaptive matching photovoltaic panels
	On the wire	10 cm AC three-hole input cable
	DC line	3 m DC output cable, MC 4 -port docking assembly
software	Image transmission APP	View and download detection pictures
bracket system	Detection bracket	1.5m aluminum alloy bracket
bracket system	Detection PTZ	Bracket integrated installation, 360- degree rotation
Usage environment	Deserts, plateaus, rooftops, hills, slopes, factories, rooftops, snowfields, greenhouses, agriculture-solar complementation, fish-light complementation, scenery-solar complementation, and other environments
Warranty and after-sales service	2 -year warranty, 24 H response, 72 H fault solution, spare parts coordination

configuration list:

serial number	name	Specification	quantity	unit
1	EL camera	20 million pixels	1	tower
2	EL infrared lens	18-55mm	1	tower
4	Image transmission module	Wi-Fi memory card	1	set
5	Data cable/charger	standard	1	set
6	camera battery	standard	2	piece
7	Detection bracket	1.5 m	1	set
8	DC regulated power supply	0～60V, 0～5A output; AC220 power supply input	1	tower
9	On the wire	3 meters	1	root
10	Equipment three-proof box	standard	1	set
11	EL image transmission APP	View in-camera detection images wirelessly	1	set
*	Applicable scene	Photovoltaic power station component testing before installation; warehouse component testing;
*	other	The device is fully automatic focusing; can be carried by air
